Especificaciones Torres Solares de Luz Led

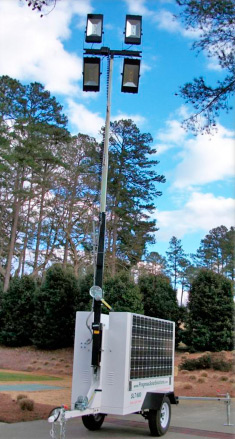

Progress Solar TM Mobile Solar Light Towers Specification for SLT800 / SLT1200 Series

SOLAR GENERATOR

• Solar Systems
- Two (2) totally independent off-grid solar systems housed on a single customized towable trailer; each off-grid system is complete with a monocrystalline solar array, MPPT charge controller, LED floodlights, an automated light timer with manual on/off function and is connected to a deep cycle bank of batteries with a state-of-charge monitoring meter.

• Power Generation –800W and 1200W of solar power (optional wind power available)
- Monocrystalline solar arrays (5” cells, highest power / sq ft available)
- Automated steel actuators to raise and lower solar wings.
- (Optional) TeleStruts – telescoping, locking arms for additional support for the solar wings in high wind regions.
- (Optional) Wind Generator – adds power (at wind speeds >7mph) during the night hours and/or times when solar irradiation is not readily available (i.e. during inclement weather, cloudy days, etc).

• Automated Light Timer / Charge Control Module
- Light Timer(s) to enable automated, timed interval or manual lighting start/stop times (works independent from solar panels)
- Maximum Power Point Tracking (MPPT) charge controller(s) to maximize solar power gained and to prevent over or under charging of batteries. Performance data from the charge controllers can be downloaded.
- Temperature controlled cooling fans provided where needed.
- Hour meter(s).

• Power Storage
- 24 Volt DC deep-cycle, battery bank(s) comprised of flooded or AGM (sealed, no maintenance) batteries; 840 – 900Ah combined capacity of battery banks.
- AC dual battery bank charger – 40Ah dual battery bank rapid-charger for backup using generator or any other standard 110V/20amp, 50/60Hz (available 240V upon request) commercial electrical source. Lights can be operated while batteries are being charged.
- Battery State-Of-Charge Meter - Visual display in increments of available battery capacity.
- (Optional) 50 ft. 20amp electrical cord to use with battery charger.

• Trailer & Housing
- Durable, steel vented housing customized to store, protect and maximize functionality of power generation, power storage and light tower components
- Wheelbase 55” (same for all SLT models)
- Towing weight – 2,980 to 3,495lbs (varies based on model, options & battery package)
- Dimensions - 4.42 meters (174 inches) long x 1.37 meters (54 inches) wide x 2.13 meters (84 inches) high (same for all SLT models)
- Towing specifications & requirements – 2” ball size, tongue weight - est. 128 lbs.
- Forklift pockets on mast for high point access and on trailer base for low point access. Crane hook pocket on mast for high point access.
- Straight tongue – standard 2” coupler connection
- 4 per unit “D” rings used to secure unit during transportation
- (Optional) Lunette Ring (for Pintle hook) or BullDog connectors
- (Optional) Front outriggers with jacks (included in high wind package)
- (Optional) Chock/Lock to secure wheels
- (Optional) Dual Wheel Jack Stand.

Light Tower

3-stage light tower that can expand from ~12’ to 30’
4 per unit LED Flood Lights (~36,400 initial LED lumens) estimated life up to ~5-10x longer than standard metal halide bulbs; LEDs expected 50,000+hrs, L79

Note: LED pupil lumens (scotopic) appear brighter than (photopic) foot candle measurements indicated when compared directly to high intensity discharge lighting (like metal halide or high pressure sodium).

SLT800 Series

Progress Solar Light Tower Standard Features including the following:
The SLT800 uses two solar arrays of 400 watts each (combined 800 watts) instead of the 300 watt solar arrays (combined 600 watts) of the SLT600 series.
The primary benefits are that the solar gain charging rate of the batteries is ~ 35% faster than with the SLT600 series.
Approximately 35 to 42 hours of operation without any additional solar or AC recharging.
Recommended for moderate to heavy users (light hours used), typically 5 day work weeks up to dusk-to-dawn; or longer for high solar irradiation regions.
This is the most commonly used model for general equipment rental fleets.

SLT800-HVR-S - Equipped with deep-cycle batteries. Periodic maintenance is required to maintain proper water levels in the cells.
SLT800-HVR-N - Uses AGM sealed deep-cycle batteries. No battery maintenance required and AGM batteries are more resistant to freezing than flooded batteries.
SLTW800-HVR-N - Uses AGM sealed deep-cycle batteries. No battery maintenance required and AGM batteries are more resistant to freezing than flooded batteries. Includes the Optional Wind Power Generator.

SLT1200 Series

Progress Solar Light Tower Standard Features including the following:
The SLT1200 uses two (2) solar arrays of 600 watts (combined 1200 watts) each instead of the 400 watt solar arrays (combined 800 watts) of the SLT800 series
Two (2) higher capacity MPPT controller(s) that can handle the increased voltage and current.
The primary benefits are that the solar gain charging the batteries is ~ 50%+ faster rate than with the SLT800 series and ~100%+ faster rate than with the SLT600 which allows for longer run times year round and during sun challenged times or regions.
Approximately 35 to 42 hours of operation without any additional solar or AC recharging.
Recommended for the heaviest users desiring up to 6 - 7 days per week, dusk-to-dawn, year round applications.
Note: The high wind package option is a standard feature for the SLT1200 series and is included in the price.

SLT1200-HVR-S - Equipped with deep-cycle batteries. Periodic maintenance is required to maintain proper water levels in the cells.
SLT1200-HVR-N - Uses AGM sealed deep-cycle batteries. No battery maintenance required and AGM batteries are more resistant to freezing than flooded batteries.
SLTW1200-HVR-N - Uses AGM sealed deep-cycle batteries. No battery maintenance required and AGM batteries are more resistant to freezing than flooded batteries. Includes the Optional Wind Power Generator.

Progress Solar™ Mobile Solar Light Towers
Optional Add-Ons

The following are routine options available as add-ons to the Solar Light Tower:

• Wind Generator (wind turbine, controller, mast extension
• High Wind Stabilization Package (front outriggers/jacks & 4 TeleStruts)
• Pintle lunette ring coupler (note: 2” ball coupler is standard)
• Chock/Wheel Lock
• 50 ft. 20 amp electrical cord (for use with standard dual bank battery chargers on SLTs)
